Features
- Download clockings and hours via a USB thumb drive, via the web interface or link the clock to TNA5

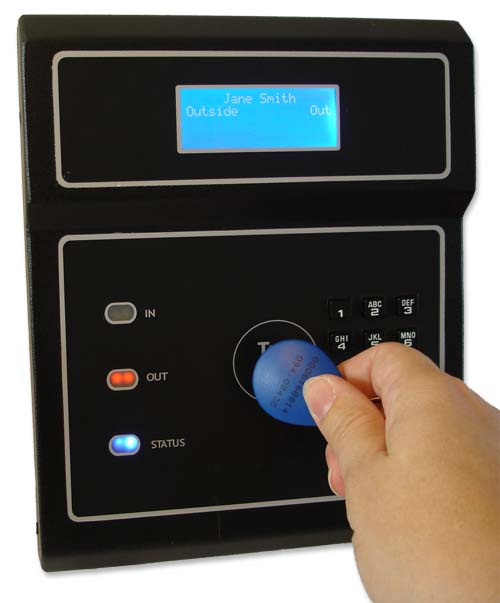

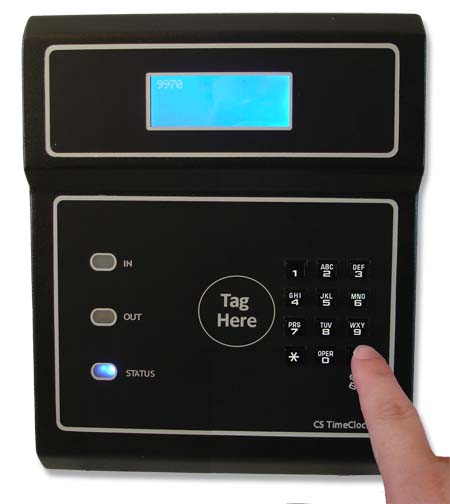

- Integrated keypad reader and proximity reader or where required, add two external proximity readers (this will disable the integrated proximity reader).
- Three relays to trigger sirens or electronic door locks.
- Supports Time and Attendance, Access Control and Job Costing*.
- Built in support for up to three additional child clocks.
- 1mm thick epoxy coated steel casing.
*Job Costing requires TNA software.
Specifications
| Available readers | Integrated keypad reader and proximity reader Add one or two external proximity readers. (Two external readers will disable the onboard proximity reader). |
| Proximity reader specifications: | Read range: +/- 12cm Supported Data Format: ASCII, Wiegand26 and Magnetic ABA Track2 Card Format: EM 4001 or compatible |
| Display | Four line, 20 character white font on blue background PLED |
| Memory | Stores up to 10 000 clockings |
| Communications | TCP/IP 10/100 Mb/s |
| Outputs | 3 x Relays* 2 x RS485 ports to support child clocks 2 x USB 1.1 ports RJ-45 Ethernet connector 6-pin MiniDIN Connector Barrel power jack 2 x external reader connectors Please note: All outputs are inside the casing. |
| Operating temperature | -15 to +70 °C |
| Power Supply | 5-12V DC (supplied) |
| IP rating | IP-50 |

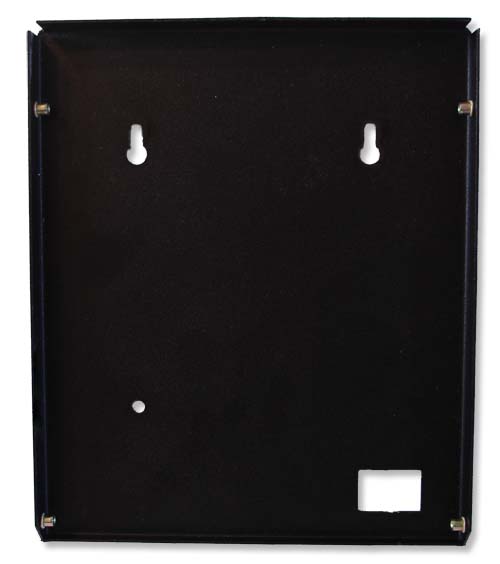

| Housing | 1mm thick epoxy coated steel plating |
| Approximate dimensions | 170mm (w) x 210mm (h) x 40mm (d) |
| Weight | 1.145 kilogram |
* The relays are rated for 12V DC. Please use a siren interface if your siren or bell is rated higher.
