Time Clocks

Small and lightweight.
Ideal for offices and small companies.

Steel casing.
Ideal for factories.

For large sites with
access control.

A curvier version of the 3210.









Which model is best suited for me?


Connect the clock to your network or straight onto the network port on your computer - the clocks communicate via TCP/IP.  If you need a non-cabled solution you can download information onto a USB thumb drive.

Clocks on the same network synchronizes clocking directions. This means employees can clock IN on one clock and OUT on another, even if the clocks are in different world time zones!

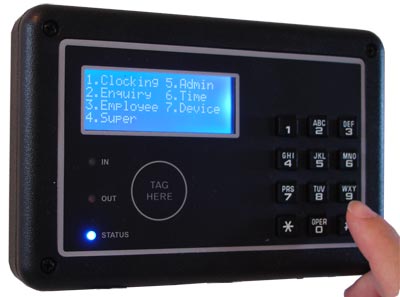

Easy to use Keypad Menu

The keypad menu allows an administrator to setup and use the clock without having to access the web interface. Add employees, assign and remove cards, setup users as supervisors or administrators, set the time on the clock, configure network settings, update the firmware, etc. You can also add a payroll, access or job clocking from the keypad.

For a non-cabled solution supervisors and administrators can download clocking and hours information onto a USB thumb drive.



Employees can clock using a proximity card and/or a PIN number.

Employees will receive audio visual confirmation of their clockings:  a double beep and a green LED for an IN and a single beep and a red LED for an OUT.

Up to 10,000 clockings can be stored in the clock's memory.

Collecting data

Employee daily and payroll hours can be exported to a USB thumb drive from the clock keypad menu.

If the clock is connected to a network you have access to much more information via the web interface.

The CS TimeClock is also compatible with TNA 5, powerful and user friendly Time and Attendance software.


Which model is best suited for me?

All CS TimeClocks have the same keypad and web interface functionality.  The difference between the models are in the casing (plastic or metal) and hardware (the number of relays and RS-485 ports).  To help you select a clock, please see the table below.

Clock Model: 3110 3150 3210 3350
Casing material: Plastic Steel Steel Plastic
Approximate Dimensions: 150mm (w) x 100mm (h) x 30mm (d) 150mm (w) x 150mm (h) x 40 mm (d) 170mm (w) x 210mm (h) x 40mm (d) 153mm (w) x 238mm (h) x 58mm (d)
Number of Relays: 1 1 3 3
Number of 485 ports: 1 1 2 2
Picture: 3110 3150  3210  3350
